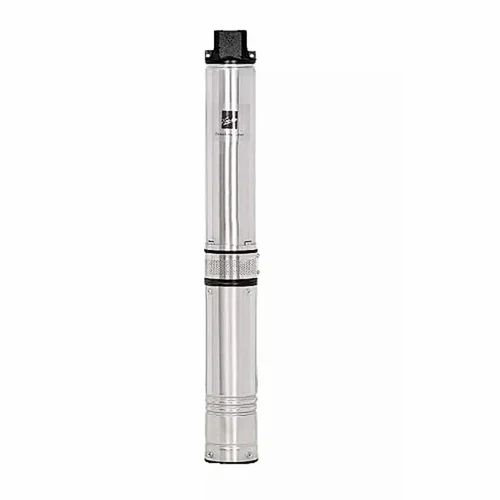

Borewell Submersible Pump, KP4 JALRAAJ UVA 30-1016, 1 HP, Single Phase, 220 Volts, Size 32mm

The Kirloskar KP4 Jalraaj UVA 30-1016 is a high-performance 1 HP borewell submersible pump built for efficient water lifting in deep borewells. Designed for residential, agricultural, and light commercial applications, this pump combines energy-saving technology with long-term durability.

Its oil-cooled motor, stainless steel construction, and 16-stage multi-impeller performance make it ideal for supplying water to overhead tanks, small farms, and multi-outlet plumbing systems — even in low voltage areas.

Part of Kirloskar’s trusted Jalraaj UVA series, this model is known for consistent water flow, quiet operation, and a compact, service-friendly build.

Key Features:

• 1 HP Oil-Cooled Motor – Designed for deep borewell use with excellent efficiency
• Wide Voltage Range (150–240V) – Performs reliably under voltage fluctuations
• 16-Stage Design – High discharge and long head range with steady water pressure
• Stainless Steel Build – Rust-resistant body ensures longer pump life
• Dynamically Balanced Components – Reduces vibration and increases motor lifespan
• IP68 Protection Rating – Fully submersible and protected for harsh underground conditions
• Quiet & Smooth Performance – Low-noise design suitable for residential use

Technical Specifications:

• Power: 1.0 HP (0.75 kW)
• Phase: Single Phase
• Voltage Range: 150V – 240V
• Cooling: Oil-Cooled
• Stages: 16
• Pipe Size: 32mm
• Build Material: Stainless Steel, Polypropylene
• Protection: IP68 Rated
• Applications:
  - Deep Borewell Water Lifting
  - Overhead Tank Filling
  - Garden & Farm Irrigation
  - Rural Water Supply
• Warranty: 12 Months Manufacturer Warranty
• Control Panel: Optional/Available on request
