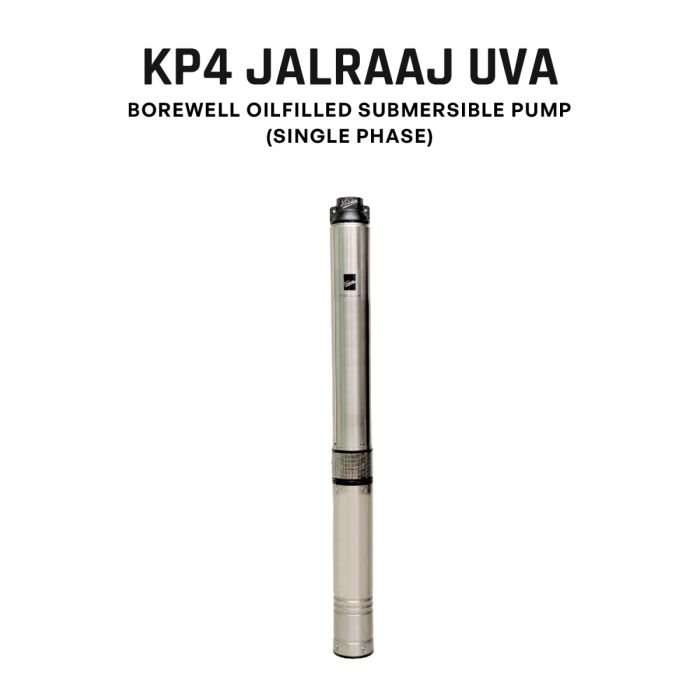

Borewell Submersible Pump, KP4 JALRAAJ UVA 30-2025, 2 HP, Single Phase, 220 Volts, Size 32mm with control panel

The Kirloskar KP4 Jalraaj UVA 30-2025 is a robust 2 HP borewell submersible pump, engineered to deliver high discharge performance from deep borewells. Suitable for residential complexes, agricultural fields, and small commercial setups, this pump offers unmatched reliability, smooth operation, and long service life.

Equipped with a 25-stage hydraulic design, an oil-cooled motor, and a corrosion-resistant stainless steel body, it’s built to perform even in areas with voltage fluctuations and continuous usage requirements.

Packaged with a control panel, the pump is ready for installation and ensures safe and automated operation from day one.

Key Features:

• 2 HP Oil-Cooled Motor – Designed for high-discharge and continuous-duty deep borewell applications
• Wide Voltage Range (150–240V) – Operates efficiently in low and fluctuating power conditions
• 25-Stage Hydraulic Design – Ideal for deep installations requiring higher head and consistent flow
• Stainless Steel Body – Corrosion-resistant structure for durability in tough water conditions
• Balanced, Low Vibration Design – Ensures smoother, quieter, and longer operation
• Built-in Overload Protection – Guards motor from burnout due to voltage drop or low-head running
• Includes Control Panel – Pre-wired for safety, convenience, and auto control

Technical Specifications:

• Power: 2 HP (1.5 kW)
• Phase: Single Phase
• Voltage Range: 150 – 240 Volts
• Stages: 25
• Cooling: Oil-Cooled
• Pipe Size: 32mm
• Material: Stainless Steel, High-Grade Polymer Components
• Control Panel: Included
• Applications:
  – Deep Borewell Pumping
  – Overhead Tank Filling
  – Irrigation & Garden Supply
  – Rural & Commercial Water Systems
• Warranty: 12 Months Manufacturer Warranty
• Protection Rating: IP68
